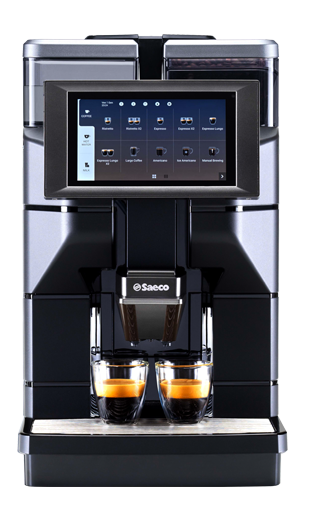

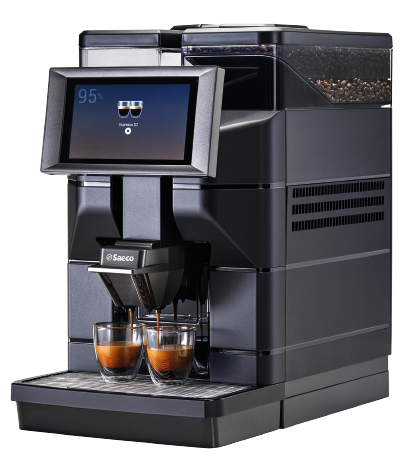

Magic B2

Highlights

8.5 to 15 g variable chamber coffee unit
7’’ touch screen
Combined coffee, milk and water dispenser unit
Compatible with MDB protocol for payment systems

VIEW SPECIFICATIONS

Specification

Dimensions (w x h x d)

280 x 470 x 481 mm

Weight

13.3 kg

Colour

black matt

Power supply

230 V/50 Hz

Absorbed power

1300 W

Hydraulic system

single circuit

Hot water outlet

yes

Water supply

autonomous tank

Water supply connection

yes (dedicated version)

Coffee bean container

1.2 kg

Water tank

4 l

Grounds container (max)

Drip container

2 l

Chamber capacity

8.5 - 15 gr

Cappuccinatore

High Speed Cappuccino

Coffee grinder

steel conical burrs

Grinding adjustment

manual, 8 levels

Coffee aroma adjustment

from 8.5 to 15 g, 4 steps

Payment systems

yes

Customizable recipes

yes

Touch screen

yes 7’’
